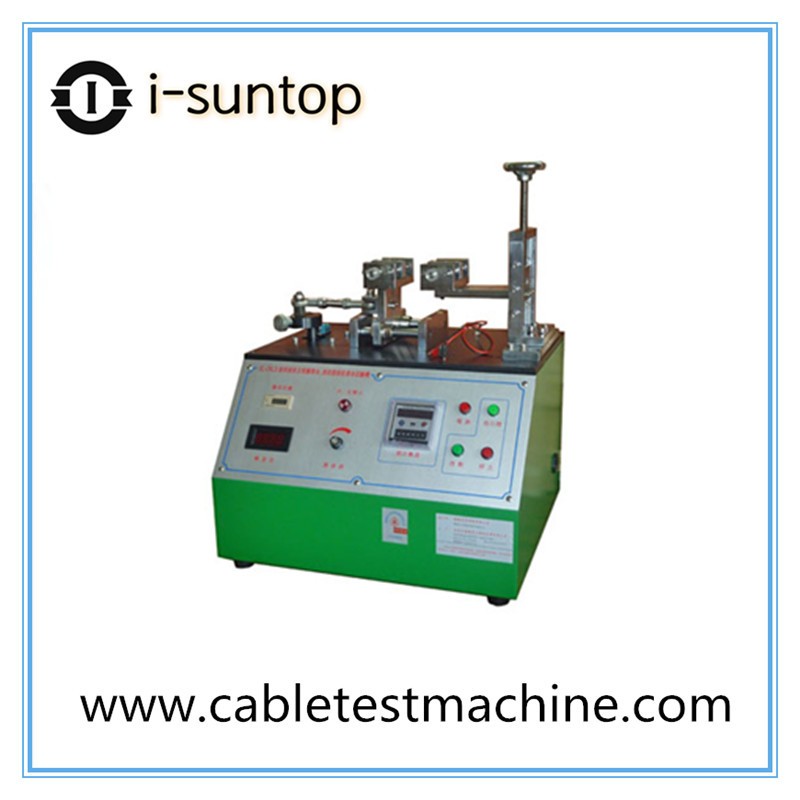

XL-CKLS Plug socket and switch life testing machine

XL-CKLS  Plug socket and switch life testing machine

Test standards：GB2099.1、GB16915.1、GB15092.1

Features：It is mainly used to detect the life test equipment for plug and switch or similar products. It is applicable to the compression and tensile failure test of various connectors, the test of single hole insertion and the whole row insertion and extraction life, and the number of interpolation times is arbitrary, the speed and stroke can be adjusted. The characteristics of the electronic display speed value, there is the sound light warning, the number of times and the plug failure have the stop function. The same test machine, replace the A ~ F clamp, can complete the life test of the above two kinds of products.

Technical parameters：

1.lifetime range：0～999999，arbitrary preset；have power failure memory function；

2.speed adjustment range：10～80 times/min，electric display，adjustable；　　

3.travel adjustment range：0～80mm，adjustable

4.standard configuration：a set of test fixture (optional)　　　　　　5.power：220V±10%，50Hz；
