Wire elongation test machine

Wire elongation test machine adopts electronic method to detect the elongation, and the automatic algorithm is shown directly by % ratio
Product description: Wire elongation test machine

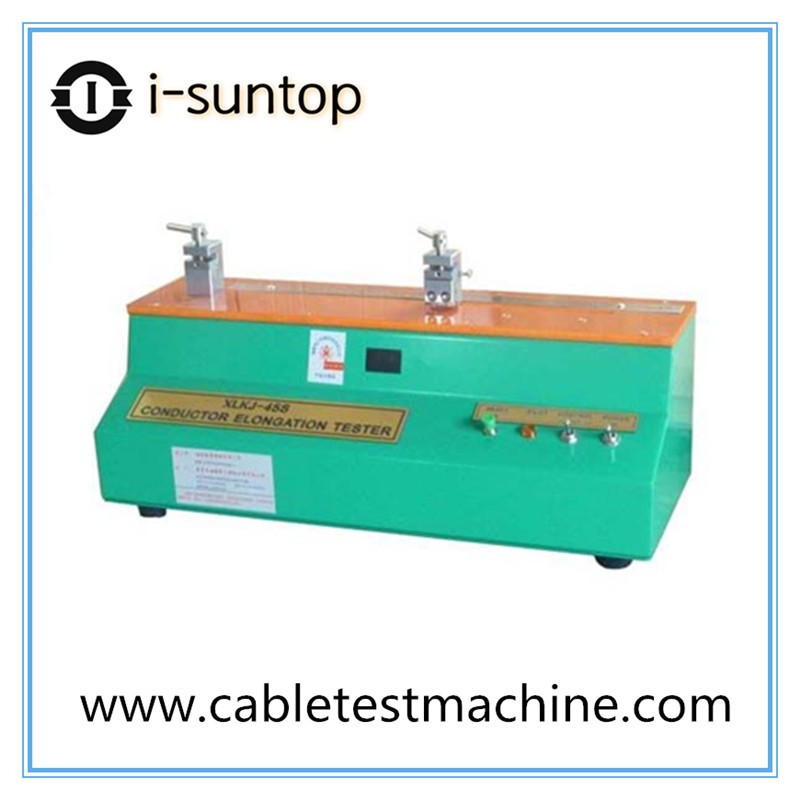

XLKJ Wire Rod (copper wire) Elongation Tester

Test standards：Execution standard：GB/T4074.3 and IEC60851-3;Inspection standard：JB/T4279.3

Application：The machine adopts electronic method to detect the elongation, and the automatic algorithm is shown directly by % ratio. When the sample breaks, the machine stops immediately and the test value can be read, easy to operate, and accurate data. Suitable for all kinds of metal wire test.

Technical parameters：

Model	XLKJ-45S	XLKJ-100S
Applicable wire	Below ￠1.5mm metal wire	Below ø 2.6mm metal wire
MAX extension	150mm	Max elongation (movable fixture) distance: 229mm (90%)
Reference distance	250±0.5mm	250±0.5mm
Stretching range	0～60%	0～90%
Display precision	0.1%	±1%(less than 2.5mm)
Stretching speed	250～300mm/min	300±60mm/min
power	1∮ 220V 50Hz 25W	1∮ 220V 50Hz 120W
Test pull value (optional)	Max design load: 50KG Optional: mechanical or electronic push-pull meter (1 ~ 50KG), which can be tested for pulling force value	Max design load：100KG Optional：Electronic push tension meter (5 ~ 100KG) can test its pull force value (less than 1% of the value).
