Insulation Resistance test device

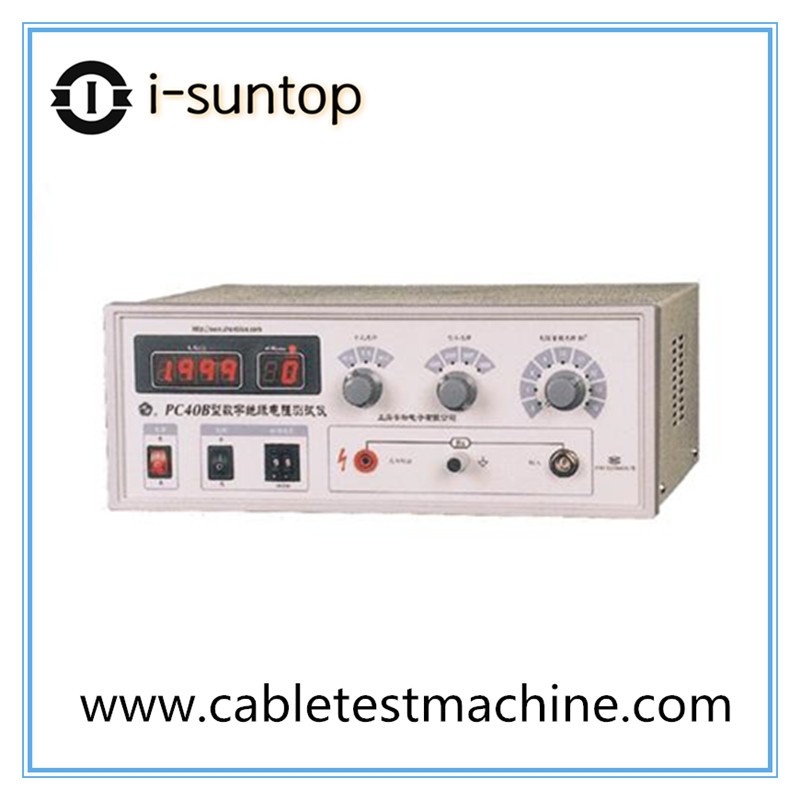

PC40B  Insulation resistance tester

Application：This instrument is suitable for measuring insulation resistance of insulating materials, electrical products and various components. It can also measure the insulation resistance of the plastic wire cable (non-shielding layer) at different temperatures after matching with the thermostat tank (slot). The instrument has the advantages of high measurement precision, stable performance and simple operation.

Technical parameters：

1.test voltage:100/250/500/1000V

2.test range: 2×105～1.999×1012Ω

3.test time:1～99min,adjustable

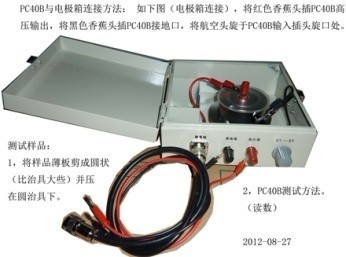

Note: the electrode box can measure the surface resistance and volume resistance of the insulation material.
