low temperature constant temperature water bath/tank

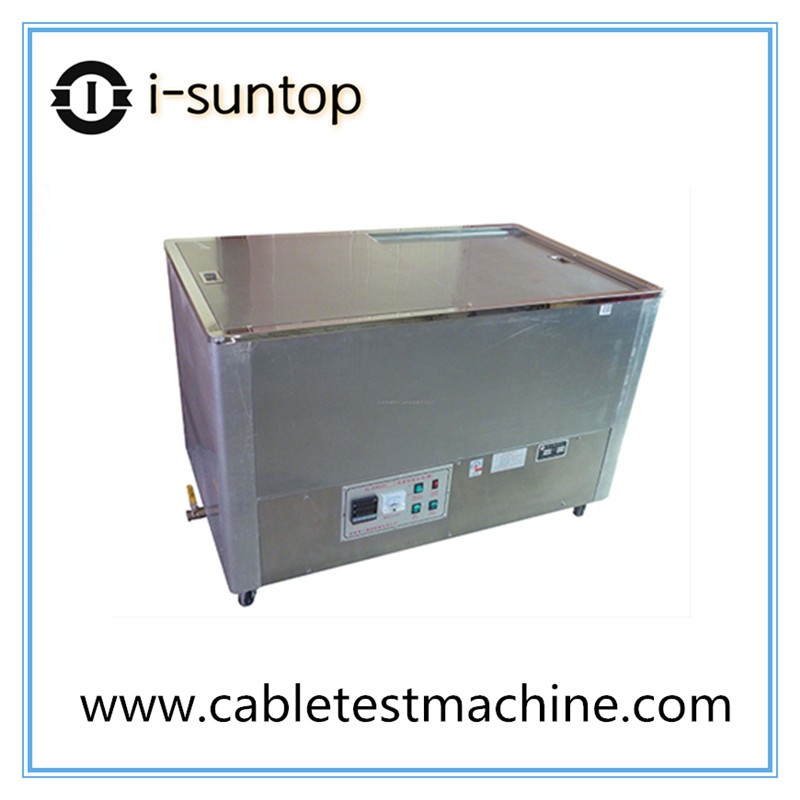

XL-DWSC 025/020  low temperature constant temperature water bath/tank

Features：It is suitable for the department of wire cable,Petrochemical, metallurgy, biochemical medicine, physical testing and chemical analysis,also for High school, factory laboratory and metrological quality inspection department.provide  a hot and cold control, the temperature uniform field source for user. The machine is controlled by microcomputer thermostat, with PID temperature control and high temperature control.It is reliable and easy to operate with internal circulation system to make the liquid temperature more uniform,The refrigeration is fast and efficient with the powerful function of the jet pump to keep the liquid temperature in the box evenly.The machine has safety device with temperature loss control function.

Technical parameters：

1.inner water tank（L*W*H）：025 type：about 1060*680*350mm，total volume:250L³（highest water level:240MM）

020 type：about 960*560*350mm， total volume:200L³（highest water level:240MM）

2.outer tank（L*W*H）：025 type:about 1280*790*820mm；  020 type：about 1180*670*820mm

3.temperature range：10～35℃，can set arbitrarily（highest temperature is 35℃）

4.Temperature fluctuation：≤±1.5℃

5.Temperature uniformity and deviation：±1.5℃

6.heater：3.0 kW

7.Compressor / Refrigeration Water Pump: Imported Compressor Refrigeration, Single 500W; Cooling Water Pump: 26W

8.Built-in circulating pump: pump flow: about 3300L / hour, pump power: 65W
