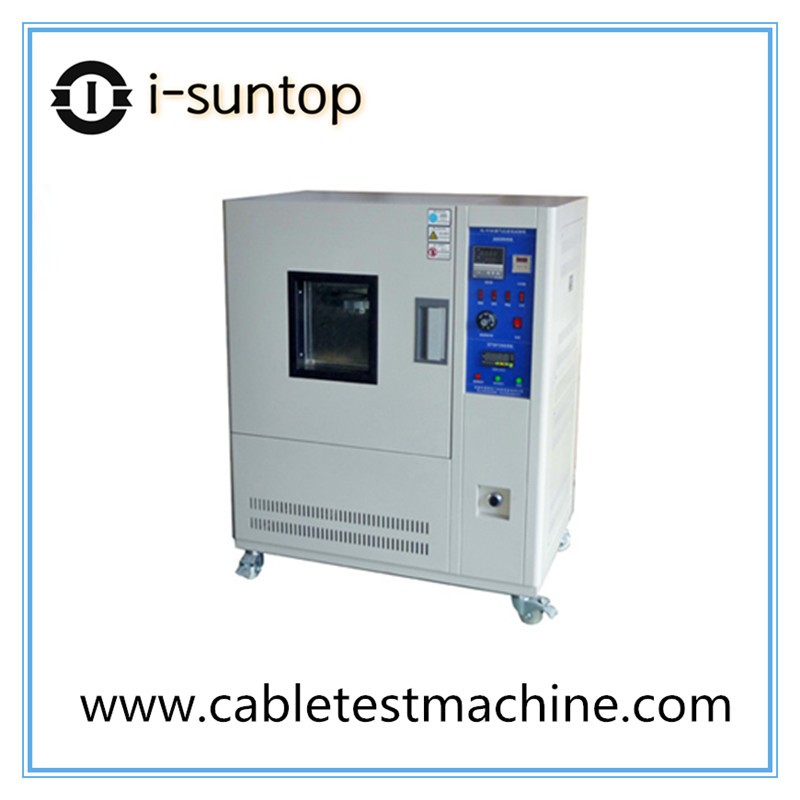

XL-016A Ventilation type aging testing instrument

XL-016A Ventilation Type Aging Test device

Test standards：UL1581 sect420.9、ASTM-D2436、CNS3556、CNS742、JIS7212、JIS B7757、GB、VDE and other test standards.

Features：It is suitable for electric wire cable, rubber plastic, leather, cloth and so on，can test the features after the aging test. The machine is equipped with a precision design air displacement adjustment device and digital voltmeter, ammeter, watt-hour meter and timer, which can be used as the determination of air replacement rate. The horizontal forced air circulation system and the air flow adjustment on both sides of the system ensure that the internal temperature of the machine is stable and stable. The machine can be verified by CCIC verification institution.

Technical parameters：

1.temperature range：normal temperature+10～300℃　　        2.control precision：±0.5℃；

3.Analytical precision：0.1℃　　　　　　　                  4.distribution error：±2.5℃；

5.inner size：500×450×500mm　　　                       6.External size:1200×650×1340mm

7.ventilation：5～300 time/hour,adjustable　

 8. Rotary disk: rotary disk and rotary motor, rotating speed:about 8 ~ 10rpm.

9.material：Stainless steel liner, shell cold-rolled steel plate electrostatic spraying

Voltage：AC 380V,Three-phase four wire system
