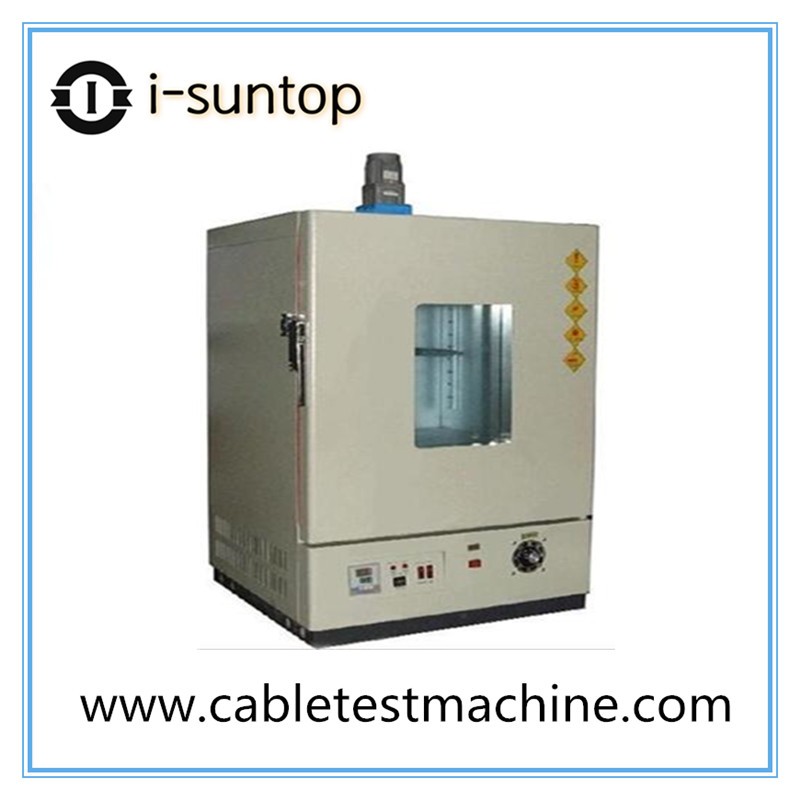

XL-016B Ventilation Type Aging Testing machine

XL-016B Ventilation Type Aging Testing machine

Test standards：JB/T7444-94、IEC216,GB/T 2951.2.

Features：

It is mainly used for the rubber sample of electric wire or cable insulator or covered body, to compare the tensile strength and elongation ratio before aging and after aging. It also can make high precision constant temperature drying oven to dry, bake, heat treatment, etc.But it is not applicable to flammable, explosive and volatile inflammable, explosive substance of drying and test items.It is the commonly testing equipment used in  industrial and mining enterprises, scientific research institutes and laboratory departments of colleges and universities.

Technical parameters：

1.temperature range：R.T.+20℃~300℃ 　　　　　　　2.working size：450×500×500mm

3.Volatility：±1℃；　　　　　　　　　　　　　　  4.Evenness：±2.5%　　　　　　　

5.ventilation：0～100 times/hour（adjustable） 　　　 6.rotary disk:2 layers，speed：5～10rev/min

7.material：Stainless steel liner, shell cold-rolled steel plate electrostatic spraying　    8.voltage：1∮ AC220V  50Hz
