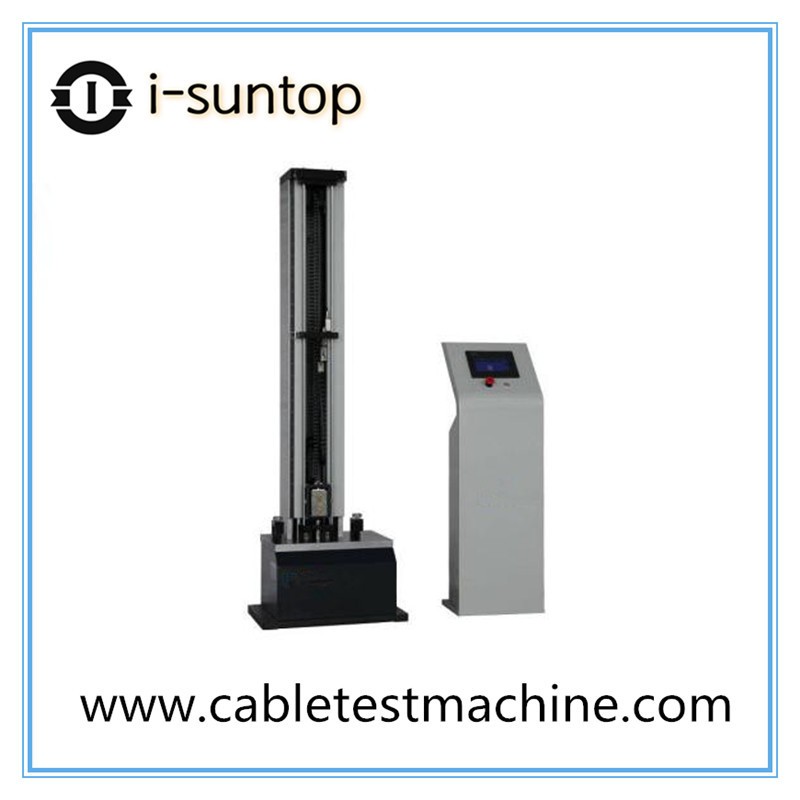

Optical cable impact testing machine

Optical cable impact testing machine

(1) Main Technical Specifications:

1) Product model: GCJ-1000

2) Impact height：1000mm

3) Impact speed: (10～20) times/min, set arbitrarily.

4) Impact counts: 1～9999 times, set arbitrarily

5) Weight of impact hammer insert with bracket for general optical cable: 0.45kg.

6) Weight of impact hammer insert with bracket for bow-type optical cable: 0.1kg.

7) Radius of optical cable impact face: 12.5mm

8) Counterweight: 0.5kg×5, 0.05kg×1

9) Tests can begin with stand-only or remotely controlled by computer. Automatically records impact counts and automatic stop after the test finished.

10) Equipment weight: 150kg

(2) Installation requirements

1) Power supply: single phase, AC220V±10%, 50～60Hz, 0.8kW.

2) Install onto a stable base, levelness≤0.5/1000, and room of more than 1 m around.

3) Ambient temperature: 25℃±10℃, humidity: ≤80% non-condensing.

4) No vibrating or corrosive media indoor.
