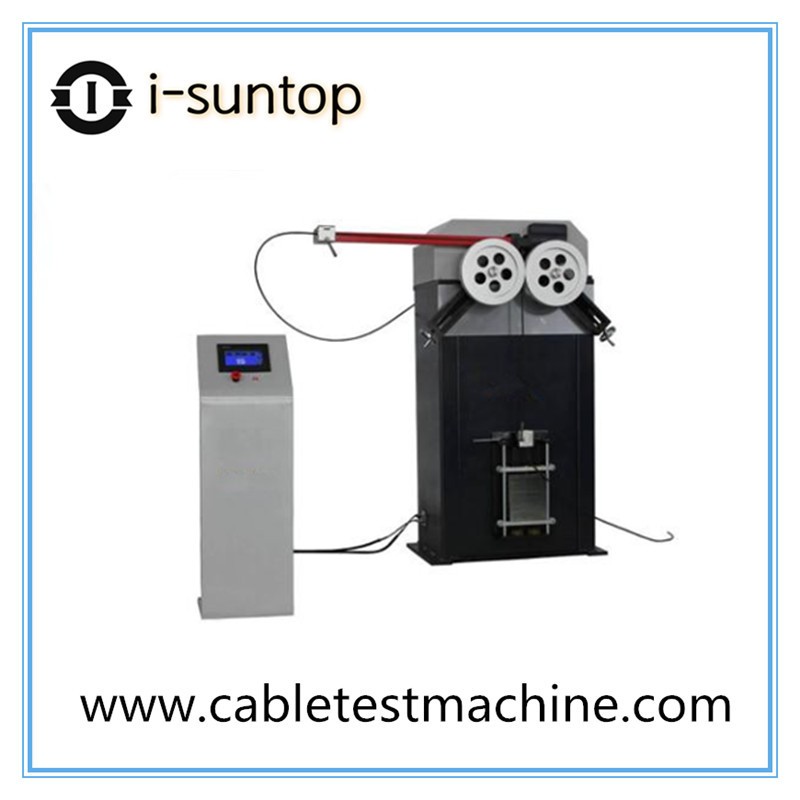

Optical cable repeated bending testing machine

Optical cable repeated bending testing machine

(1) Main Technical Specifications:

1) Product model: GWQ-90

2) Repeated bending angle: ±90°

3) Repeated bending speed: (10～30) times/min, set arbitrarily.

4) Repeated bending counts: 1~9999, set arbitrarily.

5) Counterweight bracket: 5kg

6) Counterweight: 5kg×4、2.5kg×1、1.0kg×1.

7) Radius of bending wheel: mm, 100mm and 150mm, replaceable according to testing requirements.

8) Distance from optical cable grip to wheel tangent point: 250mm, 500mm and 1000mm, can be adjustable.

9) Tests can begin with stand-only or remotely controlled by computer. Automatically records bending counts and automatic stop after the test finished.

10) Equipment weight: 600kg

(2) Installation requirements

1) Power supply: single phase, AC220V±10%, 50～60Hz, 0.8kW.

2) Install onto a stable base and room of more than 1 m around.

3) Ambient temperature: 25℃±10℃, humidity: ≤80% non-condensing.

4) No vibrating or corrosive media indoor.
