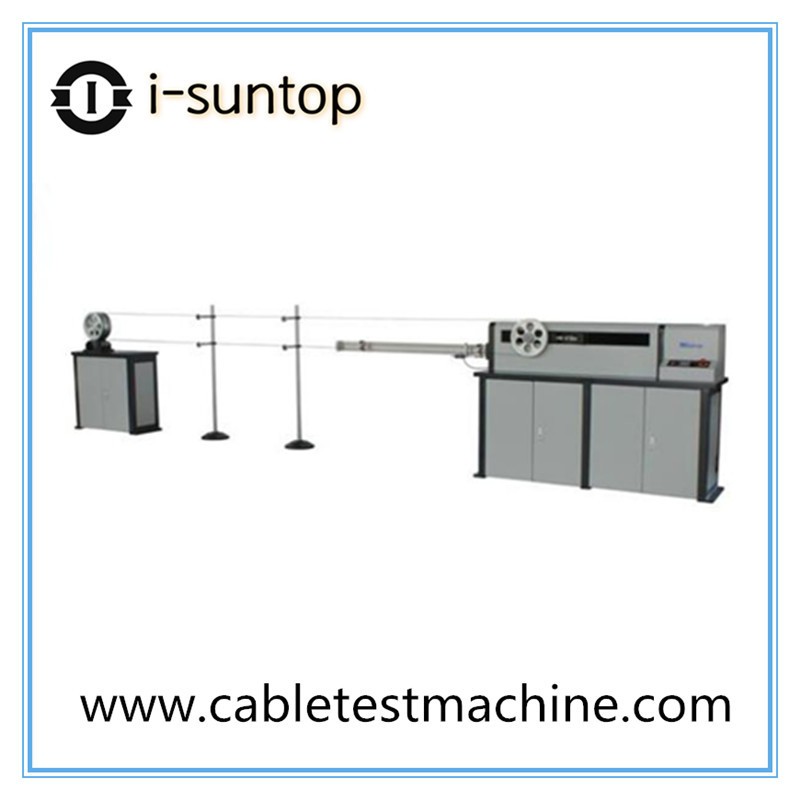

Computer controlled optical cable tension testing machine (Apply to bow-type optical cable)

2. Computer controlled optical cable tension testing machine (Apply to bow-type optical cable)

(1)  Technical Specifications:

1) Product model: GLW-2

2) Max load: 2kN

3) Load measurement range: (1%~100%) F.S.

4) Load resolution: ±250000 yard，no stepping, no change in full scale，resolution unchanged.

5) Load accuracy: ±0.5%

6) Load duration: ≥3 Hours, set arbitrarily

7) Load hold accuracy: ±0.5%

8) Deformation measurement range: (0~50) mm

9) Deformation resolution: 0.001mm

10) Deformation accuracy:  ±0.5%

11) Displacement resolution: 0.001mm

12) Displacement control resolution: 0.00002mm

13) Displacement accuracy:  ±0.5%

14) Displacement speed range: (0.01～500) mm/min, set arbitrarily

15) Displacement speed accuracy: ±0.5%

16) Tension space: 25mm

17) Distance of run: 500mm

18) Diameter of chuck and guide wheel: 250mm

19) Max diameter of clamping optical cable: 12mm

20) Equipment weight: 700kg

(2) Product configuration

1) Servo drive and servo motor: Japan YASKAWA

2) Load sensor: America Vishay (with 2kN)

3) Reducer: Taiwan KOKI

4) Pattern displacement sensor: Shanghai Liangxing

5) AEC-1200 controller: Shanghai Bairoe

(3) Installation requirements

1) Host power supply: single phase, AC220V±10%, 50～60Hz, 0.8kW

2) Computer power supply: single phase, AC220V±10%, 50～60Hz, 0.5kW.

3) Install onto a stable base, levelness≤0.2/1000, and room of more than 1 m around.

4) Ambient temperature: 25℃±10℃, humidity: ≤80% non-condensing.

5) No vibrating or corrosive media indoor.
